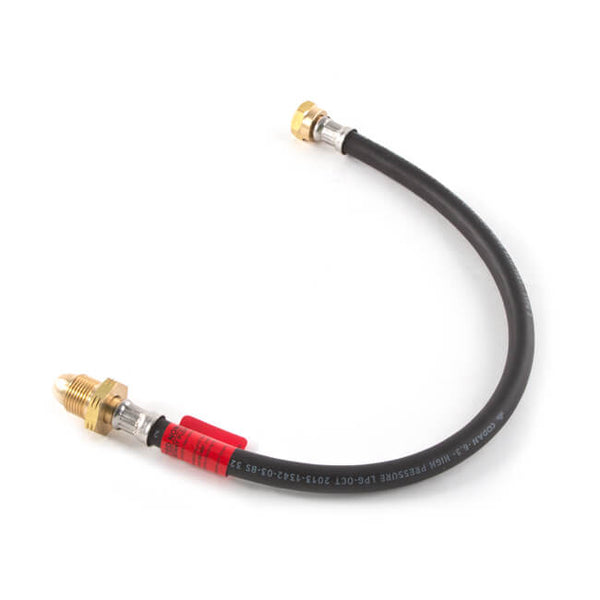

N/R POL + 5/8" LH nut x W20 nut and tail, unbraided.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. Red labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. Some assemblies available with rodent proof galvanised multi-plait overbraid. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.
application
Propane
bs eu standards
- BS 3212:1991 Type 2
burst pressure
69 bar
colour
Black
connection
N/R POL + 5/8" LH Nut x W20 Nut + Tail
gas type
Propane
inside diameter
6.3 mm
length
35"
operating pressure
Working pressure: 20 bar
outside diameter
15.5 mm
suitable application
Propane
